| T-DRILL Introduces New Automatic Tube Cut-Off Machine
T-DRILL has introduced a new Tube Cutting Center: TCC-50. This
rotary cut-off machine is a combination of good and reliable features
taken from the previous models and improvements allowed by the
latest technology. The principle remains the same: Fast, chipless
rotary cutting.

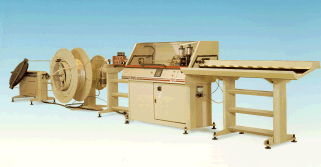

T-DRILL TCC-50 chipless rotary tube cut-off machine
|
Rotary cut-off eliminates chips, scrap, secondary deburring and
the need for washing parts. It is fast, quiet and very accurate high
volume method for cutting tube to length. The material
savings can also be considerable, since the rotary blade doesn't
remove tube material the way a saw does.
Minimum I.D. reduction is of vital importance for secondary operations
such as mandrel bending. With TCC-50, this can be achieved by
using a fast, two-step cutting method. First, the blade penetrates
95% of the tube wall. After that, the piece is separated by pulling
it laterally or pushing it apart from the side.
Typical applications
Rotary tube cut-off has many suitable applications. Nowadays, the method
is used, for example, in:
• heat exchanger applications
• air-conditioning
• heating
• refrigeration
• solar energy
• automotive gasoline and brake lines as well as automotive heat exchangers.
• hydraulic tubing
TCC-50 - An Automatic Cut-Off Machine
The automatic TCC-50 tube cut-off machine accepts a wide O.D.
range (Ø1.5 - 45 mm / 0.06" - 1.77") and cuts
to length from both coil and straight lengths. The machine is
suited for copper, aluminium, mild and stainless steel tubing.
Simultaneously grooving, end forming or chamfering, can be integrated into the system.
For further information, please contact T-DRILL:
- USA: tel. 800-554-2730 or 770-9250-520, fax. 770-925-3912
- Finland: tel: +358-6-4770-666, Fax +358-6-4771-422.
- E-mail:
WWW: http://www.iki.fi/td/
|
