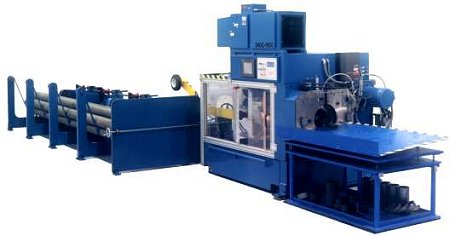

Hautau RC80 Rotary cutoff

HAUTAU has added a new, large-bore rotary tube cutoff machine to our product line of stationary tube, rotating head cutoff systems. The RC80 cuts tubes up to 9" (230mm) diameter with wall thicknesses of up to 1-1/2" (38mm). By machining both O.D and I.D chamfers at the time of cut, secondary handling and machining operations are eliminated. All cutting functions are programmable, including chamfering, grooving and rolling. Cut lengths and quantities are entered at the control console and multiple lengths can be cut in one setup. Complete part programs can be stored and recalled for even faster changeover. The hydraulic tube chucks are automatically positioned and require no adjustments. These machines use carbide parting and chamfering tools or chipless wheel-type cutters. Complete systems include a tube bundle loader or supply conveyor.

RC80 Benefits

Allows higher tool surface speeds I.D. and O.D. chamfers on both tube ends Dual chucks eliminate tool breakage Cutoff piece is held and does not fly out Cut long lengths without "steady rests" Square and shaped tubes can be cut

Fast change from lathe to wheel tooling Bowed or dented tubes do not "whip" Scratching of the tube O.D. is reduced Cutoff is smoother and quieter Operator safety is enhanced No coolant required for most cutting

RC80 Features

Auto-adjust 6-jaw chucks Cuts up to three lengths from one tube Servo-driven programmable feed length ±.005" repeatability per feed stroke 1 minute length and diameter changeover Allen-Bradley SLC-504 Controller Water-to-oil heat exchanger

Remnants are separated from cuts No collet, feed wheel or tooling changes 30" standard feed stroke Program storage and recall function Integrated hydraulic pump/tank Bosch hydraulic components Remnant bin on heavy-duty casters

RC80 Specifications

Maximum tube diameter:	9" (177) diameter
Maximum cut length:	180" (4570mm)
Minimum cut length:	1.5" (38mm)
Cut length tolerance:	±.005" (.127mm) @ Cpk greater than 1.67
Tool slides:	2 standard (4 optional)
Tool slide stroke:	3" (77mm)
Tool slide force:	1,000 pounds (453 kg)
Headstock speed:	340 rpm (variable-speed optional)
Maximum cutoff rate:	1200/hour
Hydraulic pump:	Bosch 22 GPM (83 lpm) Whisper Pump®
Pump motor:	25 HP (19Kw)
Headstock motor:	25 HP (11 Kw)
Electrical supply:	240/480 Volt, 3 phase, 60/120 amp (45/90 Kw)
Cooling water:	1-4 GPM (4-15 LPM)
Machine size:	60" x 82" x 78" (152cm x 208cm x 200cm)
Machine weight:	17,000 pounds (6300 kg)

Further information can be obtained from:

Hautau Specialty Machines
- Tel: 513-523-5968
- Fax: 513-523-0601
- WWW: http://www.hautau.com/
- Email.
- Contact: Fred Hautau
